Leakage is the silent killer of customer trust. It damages labels and boxes, ruins handbags and suitcases, and turns five-star reviews into returns. Among common primary packages for personal care, beauty, pharmaceuticals, and essential oils, roll-on bottles routinely stand out for their ability to meter flow while minimizing leak paths—even under rough shipping and daily carry. This article breaks down the engineering behind that performance, compares roll-ons to other formats, and offers a practical checklist to design a low-leak program from line to luggage.
What causes leaks in the first place?
Before we champion roll-ons, it helps to name the physics that defeat many packages:
- Hydrostatic pressure & headspace changes: In transport (altitude/temperature swings), expanding headspace can push liquid through micro-gaps.
- Capillary wicking: Thin gaps at threads, closures, or fitments can draw low-viscosity formulas outward.
- Back-contamination & “suck-back” failures: After dispensing, some packages pull liquid back improperly, leaving residue in the path that later seeps.
- Creep & relaxation: Plastics relax over time; torque drops, liners decompress, and seals marginally open.
- User handling: Side loads, upside-down storage, and pocket heat all stress seals.
The key to a better package is fewer, tighter, and more controllable leak paths—something roll-on systems handle elegantly.

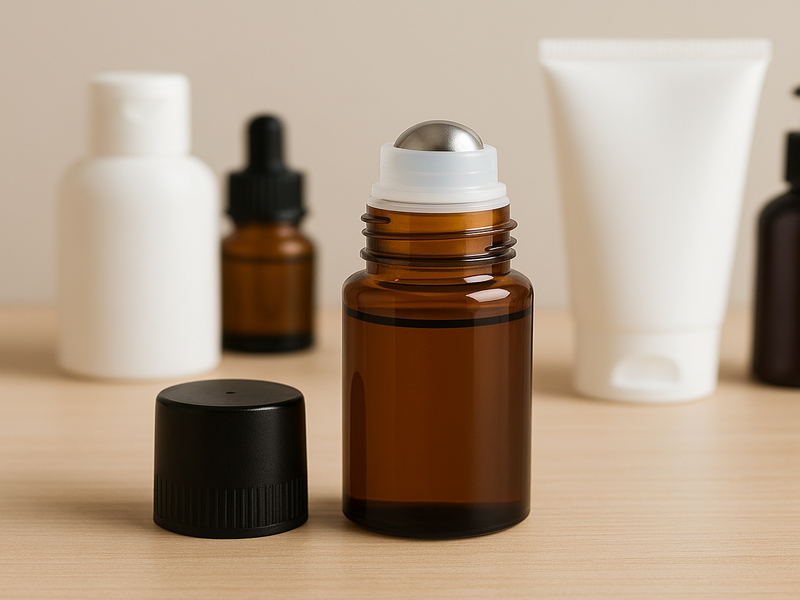

How a roll-on bottle is built (and why that matters)
A modern roll-on assembly typically includes:
- Bottle (glass or plastic) with a dedicated roll-on finish.
- Housing/fitment that snaps or screws into the neck.
- Ball (stainless steel, glass, or engineered plastic) seated in the housing.
- A wiper or sealing ring that provides interference against the ball.
- Overcap to shield the mechanism and add a secondary seal.
This creates two primary barriers:
- Static seal: Interference between the ball and the elastomer/plastic seat when not in use.
- Dynamic metering: Product is only released when the ball rotates under light pressure, momentarily unseating micro-areas while the wiper meters a very thin film onto the ball surface.
Because the ball physically occupies the outlet, there is no open orifice at rest. That single design choice eliminates the most common leak path seen in droppers, flip-tops, and some pumps.
Ten reasons roll-ons leak less
- Closed outlet at rest: The ball-seat interference acts like a valve. Without rotation plus downward force, the product stays put.
- Self-cleaning wiper: The wiper scrapes residual liquid off the ball as it reseats, limiting drips and crust that can compromise seals.
- Minimal headspace exposure: No dip tube or long air channel; the fluid path is short and easily re-sealed after each use.
- Anti-wick geometry: The annular gap around the ball is intentionally tight, breaking capillary channels that otherwise pull fluid through threads.
- Low “dead volume”: A very small reservoir above the seal means even if thermal expansion occurs, there’s little mass pressurizing the outlet.
- Multi-material options for compatibility: Switching seat materials (e.g., TPE grades) and ball substrates (stainless vs. glass) avoids swelling or hardening that can loosen seals.
- Secondary closure seal: The overcap often compresses on the housing lip, adding a belt-and-suspenders barrier during transport.
- Controlled dosing lowers post-use residue: By metering microlayers per roll, there’s less pooled liquid to migrate after capping.
- Orientation-tolerant: Many roll-ons tolerate brief horizontal or inverted storage better than open-channel packages, because the ball remains sealed until actuated.
- Simple, repeatable QC: Go/no-go checks for rolling force, seat interference, and vacuum/tilt tests are easy to standardize at the line.
How roll-ons stack up against other formats
| Format | Typical Leak Paths | Real-World Triggers | How Roll-On Differs |
| Dropper bottle (pipette) | Thread gaps, bulb back-flow, tip residue | Altitude/heat, user overfill | Roll-on has no open tip; ball reseats, wiper removes residue |
| Flip-top / disc cap | Orifice & hinge gap, liner relaxation | Pocket heat, side pressure | The outlet is closed by a ball; no hinge gap |
| Mist/spray pump | Dip tube & crimp area, actuator vent | Air pressure changes, weak torque | Short path; no dip tube; ball acts as a check valve |
| Lotion pump | Piston vent & threads | Temperature cycling, side loads | Ball-seat seal is simpler and tighter at rest |
| Squeeze tube | Rear seal creep, cap threads | Compression in bags, hot cars | Rigid bottle + ball resists squeeze-out |
| Open-neck jar | None—exposed surface | Tilt, human error | Not comparable: roll-on is closed and metered |
| Airless | Rare, but outlet valve & gasket | High altitude, clog-then-spurts | Similar in intent, roll-on is mechanical without springs/valves |
Roll-ons and airless both aim to control exposure and outflow, but roll-ons do it with a single moving part and a passive seal—fewer components to fail, and a smaller number of toleranced interfaces.
Materials and geometry: the fine print that prevents failures
Ball material:
- Stainless steel adds weight (better glide and seat contact), resists essential oil permeation, and stays dimensionally stable in heat.
- Glass is inert and premium-feeling; great for aromatics and actives.
- Engineered plastics are lighter and lower-cost; choose grades with low swelling in oils and alcohols.
Seat/wiper:
Choose TPE or PE grades with proven resistance to your solvent system. The target is a stable modulus over temperature, so the seal force doesn’t collapse in warm climates.
Interference & roundness:
Microns matter. Consistent ball diameter, circularity of the seat, and controlled interference create repeatable sealing pressure without making roll resistance too high.
Housing design:
Snap-fit vs. screw-in affects assembly and rework. Anti-rotation features keep the seat aligned so seal lips aren’t distorted by torque.
Overcap:
An inner land that lightly compresses the housing lip adds a secondary vapor barrier and keeps pocket lint out of the ball mechanism.
Formulation factors: viscosity, volatility, and solids
Viscosity window: Roll-ons excel with thin to mid-viscosity liquids and gels. Very watery formulas may need a slightly tighter seat or smaller ball to slow flow; very thick gels may need larger balls for sufficient shear.
Volatile carriers (alcohols, terpenes): Choose seats that resist swelling or plasticization; test at elevated temps (e.g., 40–50 °C) to catch slow degradation.
Solids & crystals: Avoid crystal growth on the ball/seat (e.g., high-salt or high-sugar actives) that can prop the seal open. Use chelants, humectants, or inhibitors where relevant.
Fragrance oils: Stainless balls reduce odor retention; some plastics can pick up scent and alter seal behavior over time.
Manufacturing & QC practices that make roll-ons bulletproof
Clean, dry components: Any oil or dust on the seat reduces friction and sealing force. Audit incoming QC for residual mold release.
Ball insertion force control: Use validated insertion force/height to set interference without deforming the seat. Over-pressing can permanently crease the lip.
Torque spec for threaded housings: If your design screws into the neck, set a narrow torque window to prevent back-off during temperature cycles.
Headspace management: Fill heights should leave consistent ullage; nitrogen blanketing can limit oxidation, but also reduces headspace expansion forces.
Line tests:
- 90-degree tilt test (no drip in X seconds).
- Inverted storage at elevated temperature for 24–72 hours.
- Vibration/drop in secondary pack to simulate courier networks.
- Vacuum/pressure decay on a sampling basis for early leak detection.
Aging studies: 1–3 months accelerated (e.g., 40 °C/75% RH) to catch slow seat relaxation, stress-cracking, or fragrance-seat interactions.
Cap application & secondary seal: If the overcap includes a land seal, verify compression set after aging. For high-risk channels, a shrink band adds tamper evidence without altering the primary seal.
E-commerce & travel performance
- Orientation-agnostic packing: Because the outlet is sealed, roll-ons tolerate brief inversion and side-load during courier runs better than flip-tops and droppers.
- Temperature swings: Properly chosen seats maintain seal force over a wider thermal window, mitigating “hot-car weep.”
- Cabin pressure & altitude: With a short, closed path and a small “dead volume,” roll-ons show fewer pressure-induced burps in air transit.
- Everyday carry: Tossed in backpacks and handbags, the ball won’t open unless a rolling + downward force is applied—an uncommon combination in bags.
Sustainability and waste reduction
Leakage isn’t only a UX problem—it’s environmental and economic waste. Roll-ons help by:
- Reducing product loss: Metered films versus free pours mean fewer stains, less sticky packaging, and longer usage per bottle.
- Less secondary wrap: Many brands can skip extra tape around caps (common with droppers) because the primary seal is robust.
- Refillable potential: Glass roll-on bottles with stainless balls and replaceable seats fit well with refill programs; components are durable enough for multiple cycles.
- Recyclability: Choose mono-material housings (e.g., all-PP) and clearly mark components. Stainless balls are easily separated in post-consumer streams if disassembled.
Where roll-ons shine (and where they don’t)
Best fits:
- Essential oils, aromatherapy blends, and fragrances
- Targeted skincare actives (spot treatments, eye serums)
- Pain relief gels and topical pharmaceuticals
- Antiperspirant/deodorant liquids and thin gels
Potential misfits:
- Very thick butters and suspensions with large particulates
- Products needing high-volume doses per application (body lotions)
- Formulas prone to crystallization at the outlet
When the fit is marginal, tweak geometry (larger ball, tighter seat), reformulate viscosity, or consider an airless package if dosage per actuation must be higher.
Quick design framework for a low-leak roll-on program
Define the fluid: Viscosity at 20 °C and 40 °C; presence of alcohols/terpenes; particulate size and load.
Pick the ball:
- Stainless for weight, glide, and odor neutrality.
- Glass for inert premium cues.
- Plastic for cost and weight—but verify swelling.
Select seat/wiper resin: TPE or PE with documented resistance to your solvent system; test for compression set and modulus across temperatures.
Set interference & rolling force: Target a gentle start-torque for consumer comfort while maintaining a drip-free seal at rest.
Validate the housing: Snap vs. screw; anti-rotation features; venting as needed to avoid vacuum lock during use.
Engineer the overcap: Secondary seal land, internal stops to avoid crushing the fitment, and tamper evidence.
Build a test plan: Tilt/inversion, vibration/drop, thermal cycling, altitude simulation, and 1–3-month accelerated aging.
Document your SOP: Cleaning, assembly, torque checks, in-line sampling, and acceptance criteria (e.g., “no visible weep after 24 h at 40 °C inverted”).
Troubleshooting: if you still see leaks
- Weeping around the ball: Increase seat interference slightly; switch to a higher-hardness TPE; check ball roundness tolerance.
- Residue buildup: Improve wiper lip geometry; add a secondary wiper; evaluate surfactants in the formula that reduce surface tension excessively.
- Heat-only leaks: Verify compression set of the seat after aging; ensure overcap isn’t deforming the housing at high temps.
- Random units leaking: Look for variability in ball diameter or insertion force; audit incoming QC for mold release contamination on seats.
If leaks are eroding your profits or reputation, start your redesign with a roll-on bottle test panel. Adjust the ball-seat material and the bottle seat’s interference fit to your recipe, validate under heat, vibration, and inversion, and watch as defects, returns, and customer satisfaction levels decrease.
